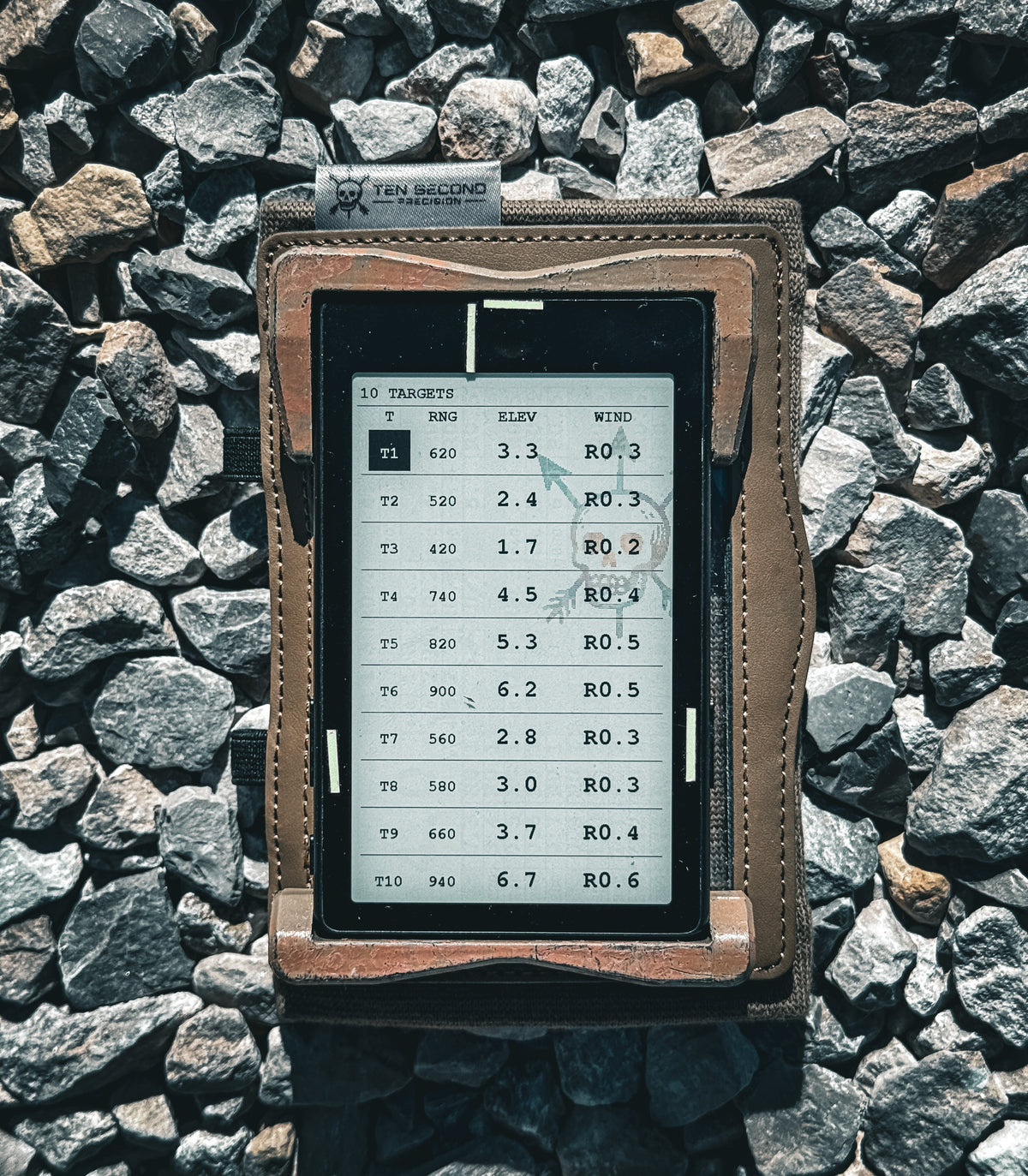

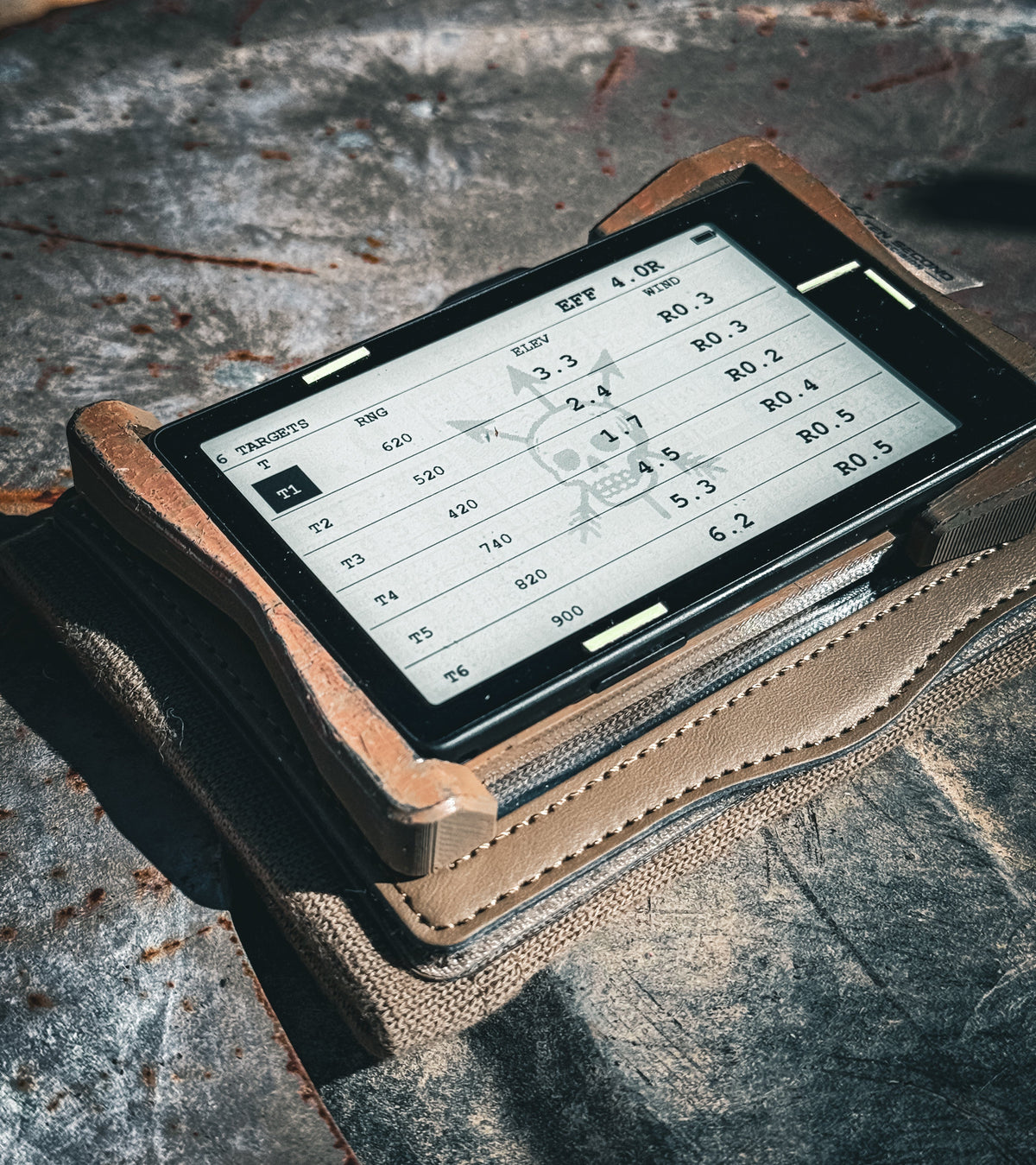

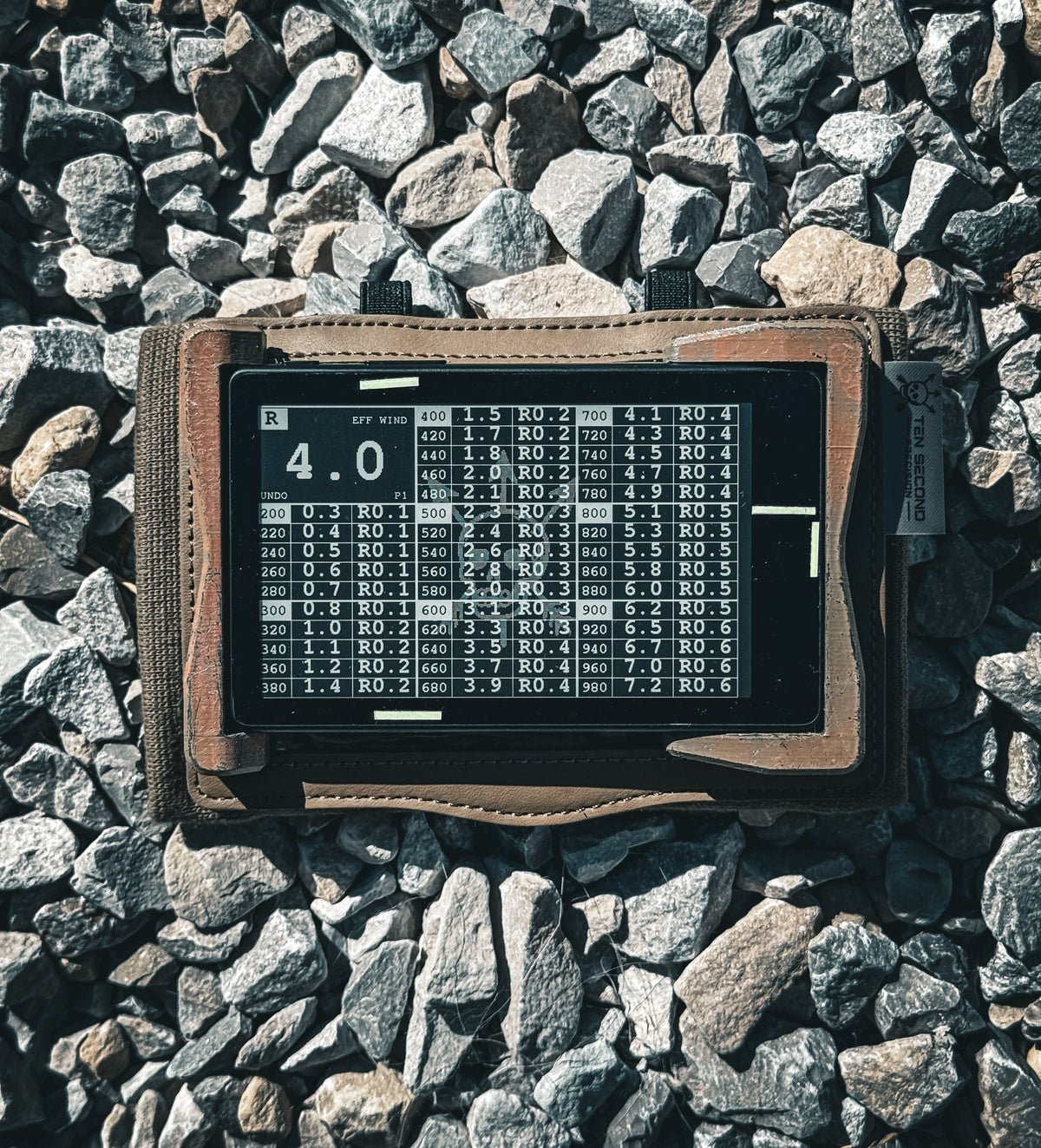

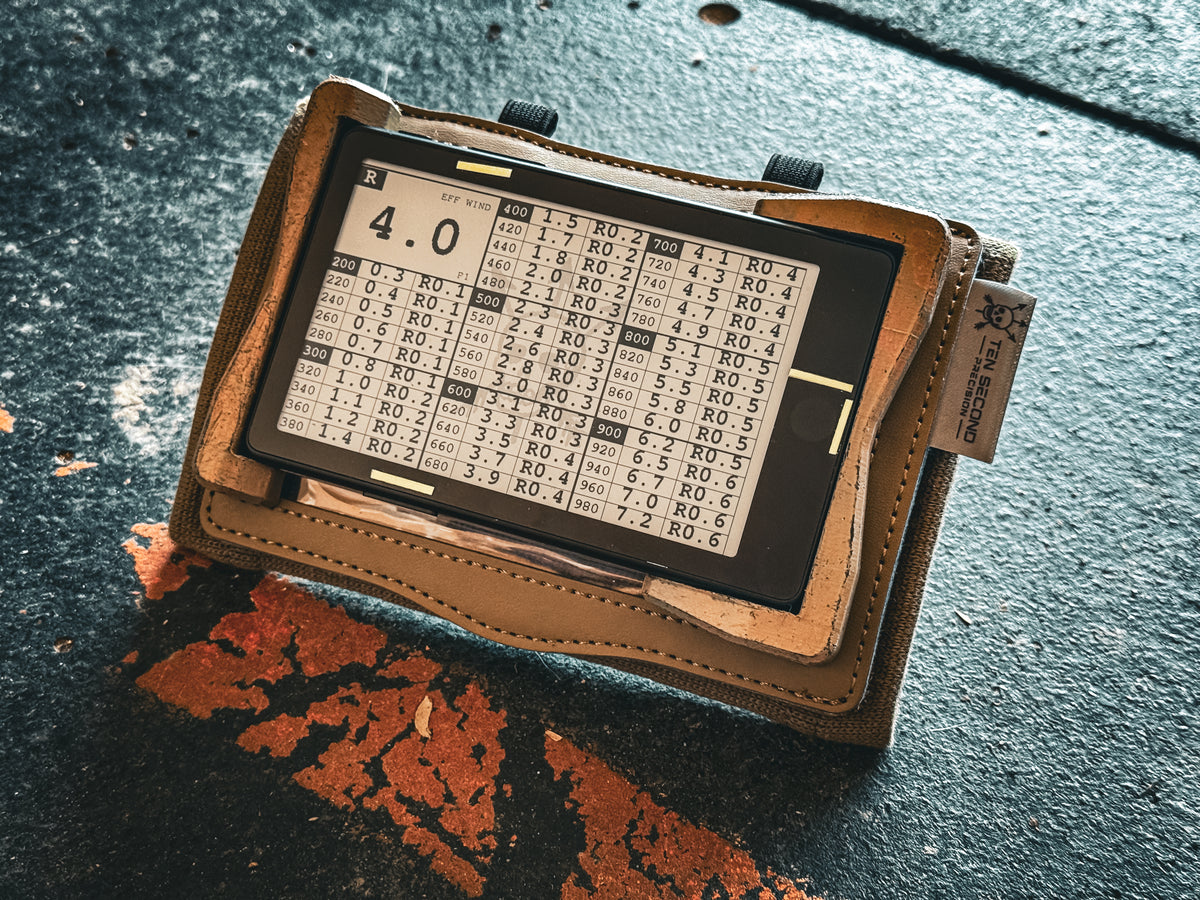

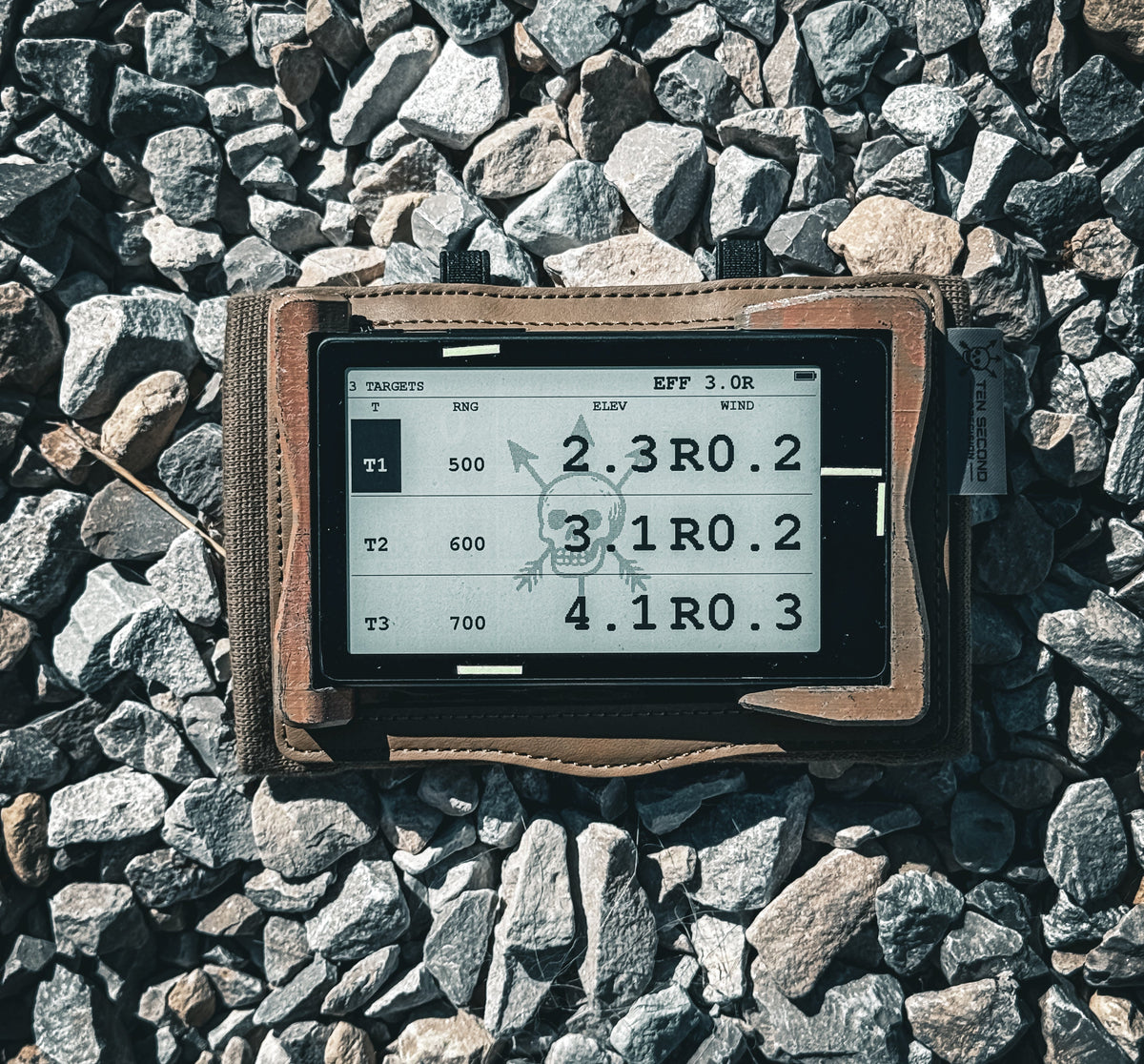

Ten Second Precision DEAD Card
Ten Second Precision DEAD Card - Data from 200 – 1000y when you need it. Distance, Effect, Actual Wind Speed, Direction. No mental math. (Ships in 4-6 weeks!) Next Pre-Order coming soon! Sign up for our Newsletter for details!
Features
Lase your target. Tap your range. Adjust your wind. Get instant results. No Connection Required. DEAD Card is your hard Data Card with adjustable wind and stage builder.
- Up to ten targets (stage card moves to portrait mode above 6).
- e-paper, which means it’s still there. Sunlight readable, holds its image at zero power.
- Intuitive controls. Two side keys, capacitive touch, and power. That’s it, you can learn it fast.
- It remembers everything! Come-ups, wind call and ballistic profile all survive a flat battery, a reset, and a firmware update. Wake it and DEAD Card returns to the page you left it on.
- Yards or Meters, MOA or MRAD
What’s in the Box?
DEAD Card – Hardware, flashed, tested and supported.
Ten Second Precision DEAD Card Specifications
- Display: 4.3” E-Paper, 800 x 480, ~219ppi, capacitive touch
- Front Light: Warm + Cold, Adjustable Brightness
- Processor: ESP32-S3, dual-core 240 MHz
- Memory: 16 MB flash, 8 MB PSRAM
- Wireless: WiFi, for firmware updates – the unit’s own network, never the internet.
- Battery: Rechargeable, USB-C, with fuel gauge
- Controls: Two Side Keys, Capacitive Touch, Power
- Size: 4.38” x 2.73” x 0.24” (111.3 x 69.3 x 6.0 mm)
- Radio Compliance: FCC ID 2BTR9-X4PRO
- Firmware: DEAD OS, Updatable
- Range Table: 200 – 1,000y
- Targets per Stage: Up to 10
- Wind Resolution: 15 degrees direction, 1mph speed, 0.1 MRAD/0.25MOA
- Weight: 2.5oz
- Data Sleeve Not Included. Purchase one here.
Frequently Asked Questions
Do I need a rangefinder? No – and it doesn’t connect with one. The 200 – 1,000y table is on the unit, and a full stage card is built by tapping the ranges you determine. Nothing to pair, nothing to lose pairing.
Does it need a phone or a signal? Neither, ever. There is no app. The only time Wi-Fi comes up is a firmware update, and that is on the unit’s own network, nothing reaches the internet.
Is it readable in bright sun? That’s the reason it’s on e-paper. No backlight to be washed out and no angle you have to find. A front light is built in for the other end of the day.
What happens if the battery dies? The screen keeps showing whatever was last on it. E-paper holds its image at zero power. Everything is in non-volatile memory, so once it’s charged you will be able to select ranges and make wind corrections again.
Can I use my own ballistics? Yes, you enter come-ups and wind values for your system. The unit extends your curve; it does not override it with someone else’s model.
How do I get updates? Settings – Update. The Unit makes its own network, you push the file from a browser, and a failed update leaves the unit untouched.
Who supports it? Ten Second Precision, directly. Settings – About shows your unit ID and Firmware Version. One photo of that screen is everything Support needs.
Questions? Email us at info@tensecondprecision.com
